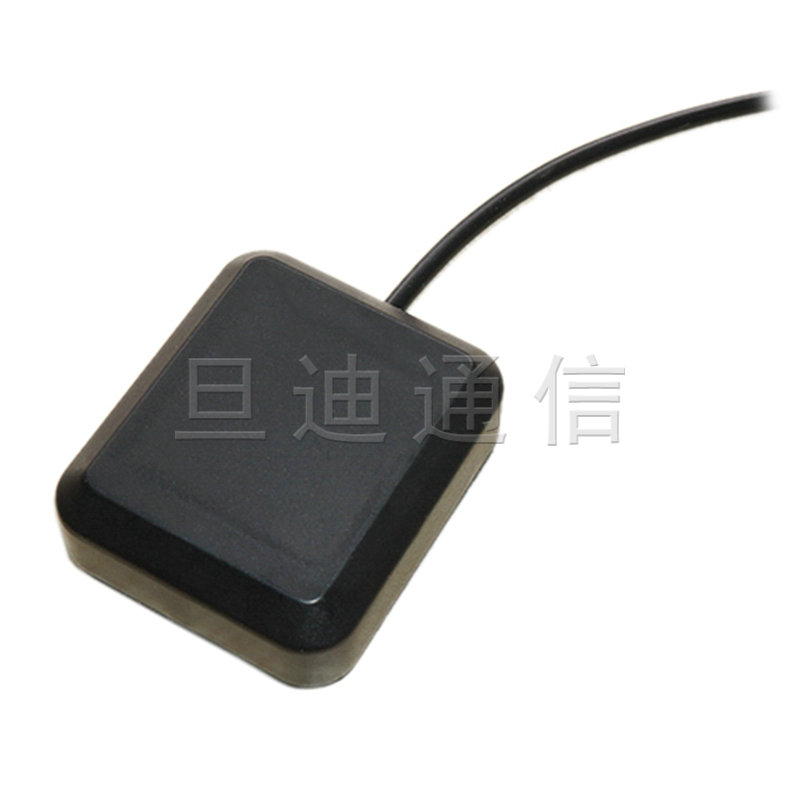

| Antenna |
Center Frequency |
L1:1575.42±1.023 MHz B1:1561.098±2 MHz |
Bandwidth |
10MHz min | |
Peak Gain |
5dBic | |
| Axial Ratio | 3.0dB max | |
| V.S.W.R | 1.5dB max | |
| Impedance | 50Ω | |
| Polarization | RHCP | |
| LNA |
Center Frequency |
1568±1.023MHz |
Gain |
L1:31±2 dB B1:31±2 dB |
|
Noise Figure |
1.5dB max | |
| Ex-band Attenuation | 40dB@CF+60MHz/40dB@CF-60MHz | |
| Voltage | DC 3.0~5.0V | |
| Current | 15±2 mA | |
| V.S.W.R | 2.0dB max | |

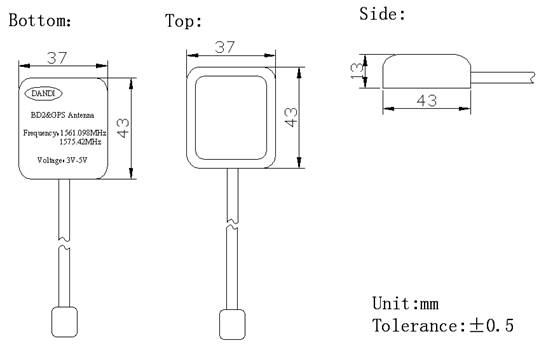

| Mechanical | Cable | RG174 |
| Connector | GT5/SMA/FAKRA or others | |
| Radome Material | ABS | |
| Ingress Protection | IP67 | |
| Mounting Method | Magnet/Adhesive | |
| Environmental | Operating Temperature | -40℃ to +85℃ |
| Relative Humidity | Up to 95℃ | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant |
