Product Introduction

Model:

GPI-DD18T4/2

Product Introduction:

Product Description : 1、GPS Internal Antenna,dimension:18mm18mm6.7mm/18mm18mm4.7mm; Low voltage ,low power consumption, high sensitivity, fast positioning supported; 2、Mounting Method:Adhesive; 3、Wireless center frequenc

SLU0226DS
SLU0226DS
Product description
Product Description
1、GPS Internal Antenna,dimension:18mm×18mm×6.7mm/18mm×18mm×4.7mm;
      Low voltage ,low power consumption, high sensitivity, fast positioning supported;
2、Mounting Method:Adhesive;
3、Wireless center frequency, cable length can be customized;
4、The utility model can be widely used in portable handhold navigation and positioning equipment, industry navigation positioning equipment;

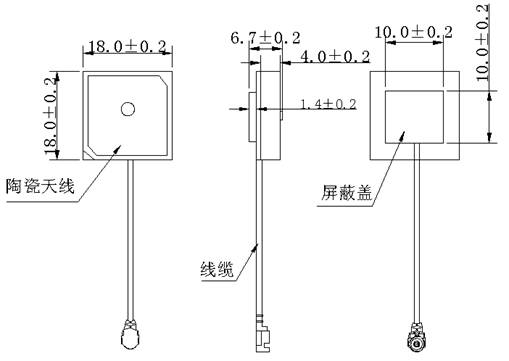

Product Dimension


Product Introduction

Antenna
Center Frequency
1575.42±1.023MHz
Bandwidth
10MHz min
Dimension
18X18X4 18X18X2
Peak Gain
2.5dBi 2.0dBi
Axial Ratio 3.0dB max
V.S.W.R 1.5dB max
Impedance 50Ω
Polarization RHCP
LNA
Center Frequency
1575.42±1.023MHz
Gain
18±2dB
Noise Figure
1.5dB max
Ex-band Attenuation 40dB@CF+60MHz/40dB@CF-60MHz
Voltage DC 3.0±0.3V
Current 10±2 mA
V.S.W.R 2.0dB max
Mechanical Cable RF1.13/RF0.81
Connector IPX1/2/3/4 or others
Radome Material ceramics
Mounting Method Adhesive
Environmental Operating Temperature -40℃ to +85℃
Relative Humidity Up to 95℃
Environmentally Friendly ROHS Compliant
